The performance of a heat exchanger is a crucial factor in various industrial processes, and the surface area of the heat exchanger plays a pivotal role in determining its effectiveness. As a leading supplier of air cooler heat exchangers, we understand the significance of surface area and its impact on the overall performance of our products. In this blog post, we will explore in detail how the heat exchanger surface area affects its performance, and why it matters to our customers.
Heat Transfer Basics
Before delving into the relationship between surface area and performance, let's briefly review the basics of heat transfer. Heat transfer occurs in three main ways: conduction, convection, and radiation. In the context of air cooler heat exchangers, conduction and convection are the primary modes of heat transfer.
Conduction is the transfer of heat through a solid material, such as the tubes and fins of a heat exchanger. The rate of conduction depends on the thermal conductivity of the material, the temperature difference across the material, and the distance over which the heat is transferred. Convection, on the other hand, is the transfer of heat between a solid surface and a fluid (in this case, air) due to the movement of the fluid. The rate of convection depends on the fluid velocity, the surface area of the solid, and the temperature difference between the surface and the fluid.
Effect of Surface Area on Heat Transfer Rate
The surface area of a heat exchanger has a direct impact on the rate of heat transfer. According to the heat transfer equation, the rate of heat transfer (Q) is proportional to the surface area (A) of the heat exchanger, the temperature difference (ΔT) between the hot and cold fluids, and the overall heat transfer coefficient (U). Mathematically, this can be expressed as:
Q = U × A × ΔT
From this equation, it is clear that increasing the surface area of the heat exchanger will result in an increase in the rate of heat transfer, assuming the other factors (U and ΔT) remain constant. This is because a larger surface area provides more contact between the hot and cold fluids, allowing for more efficient heat exchange.
For example, consider two air cooler heat exchangers with the same overall heat transfer coefficient and temperature difference. One heat exchanger has a surface area of 10 square meters, while the other has a surface area of 20 square meters. According to the heat transfer equation, the heat exchanger with the larger surface area will transfer heat at twice the rate of the heat exchanger with the smaller surface area.
Impact on Efficiency
In addition to increasing the heat transfer rate, a larger surface area can also improve the efficiency of the heat exchanger. Efficiency is defined as the ratio of the actual heat transfer to the maximum possible heat transfer. By increasing the surface area, the heat exchanger can approach the maximum possible heat transfer more closely, resulting in higher efficiency.
A more efficient heat exchanger requires less energy to achieve the same level of heat transfer. This means that our customers can save on energy costs by using air cooler heat exchangers with larger surface areas. Additionally, higher efficiency also means that the heat exchanger can operate at a lower temperature, which can extend the lifespan of the equipment and reduce maintenance requirements.
Considerations for Different Applications
The optimal surface area for a heat exchanger depends on the specific application and requirements. In some applications, such as in power plants or chemical processing plants, a large surface area may be necessary to handle high heat loads and achieve the desired level of heat transfer. In these cases, our G Type Fintube is an excellent choice, as it provides a large surface area for efficient heat exchange.
On the other hand, in applications where space is limited or the heat load is relatively low, a smaller surface area may be sufficient. In such cases, we offer a range of compact air cooler heat exchangers that are designed to provide effective heat transfer in a small footprint.
Role of Fins in Increasing Surface Area
Fins are a common feature in air cooler heat exchangers, and they play a crucial role in increasing the surface area. Fins are thin, extended surfaces that are attached to the tubes of the heat exchanger. By increasing the surface area of the tubes, fins enhance the convective heat transfer between the tubes and the air.
There are different types of fins available, each with its own advantages and disadvantages. For example, our Aluminum Air-cooled Fan is often used in combination with fins to improve the air flow and heat transfer efficiency. The fins increase the surface area, while the fan helps to move the air across the fins, enhancing the convective heat transfer.
Impact on Pressure Drop
While increasing the surface area can improve the heat transfer performance of a heat exchanger, it can also have an impact on the pressure drop across the heat exchanger. Pressure drop is the difference in pressure between the inlet and outlet of the heat exchanger, and it is caused by the resistance to fluid flow through the heat exchanger.
A larger surface area generally results in a higher pressure drop, as there is more surface for the fluid to flow over and around. This can require a higher power consumption for the fans or pumps that are used to move the fluid through the heat exchanger. Therefore, when designing a heat exchanger, it is important to balance the need for a large surface area with the acceptable level of pressure drop.
Importance of Louvers and Frames
In addition to the surface area of the tubes and fins, the design of other components of the air cooler heat exchanger, such as the louvers and frames, can also affect its performance. Louvers are used to control the air flow into and out of the heat exchanger, while frames provide structural support.
Our Pneumatic Bair Cooler Louvers and Hot-dip Galvanized Air Cooler Louvers are designed to optimize the air flow and reduce the pressure drop. They can be adjusted to control the amount of air entering the heat exchanger, which can improve the heat transfer efficiency.

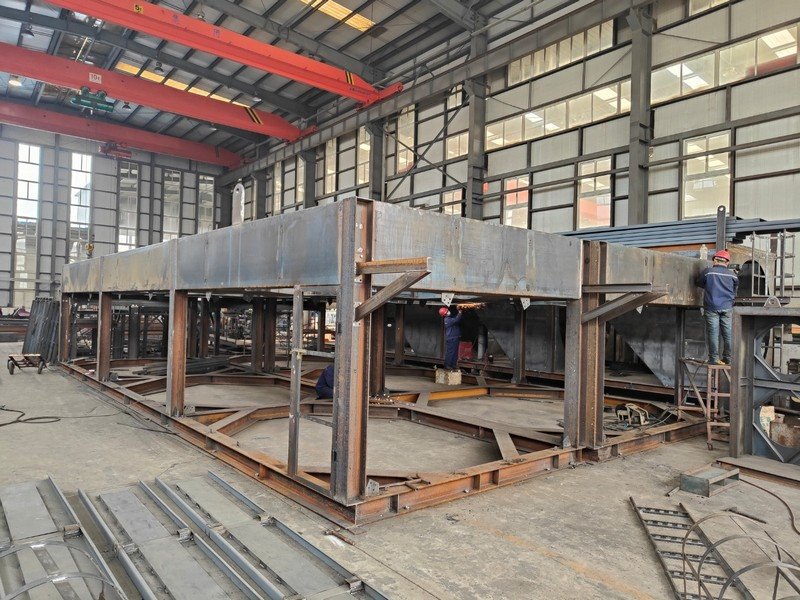

The Ocean Environment Air Cooler Frame is specifically designed for use in harsh ocean environments. It provides strong structural support and protection against corrosion, ensuring the long-term performance of the heat exchanger.
Conclusion
In conclusion, the surface area of a heat exchanger has a significant impact on its performance. By increasing the surface area, we can increase the rate of heat transfer, improve the efficiency, and ensure the effective operation of the heat exchanger. However, it is important to consider other factors, such as pressure drop and the specific requirements of the application, when designing and selecting a heat exchanger.
As a leading supplier of air cooler heat exchangers, we offer a wide range of products with different surface areas and designs to meet the needs of our customers. Whether you need a high-capacity heat exchanger for a large industrial application or a compact heat exchanger for a space-constrained environment, we have the solution for you.
If you are interested in learning more about our air cooler heat exchangers or discussing your specific requirements, we invite you to contact us for a detailed consultation. We look forward to working with you to provide the best heat exchange solutions for your project.
References
- Incropera, F. P., & DeWitt, D. P. (2001). Fundamentals of Heat and Mass Transfer. John Wiley & Sons.
- Cengel, Y. A., & Ghajar, A. J. (2015). Heat and Mass Transfer: Fundamentals and Applications. McGraw-Hill Education.
